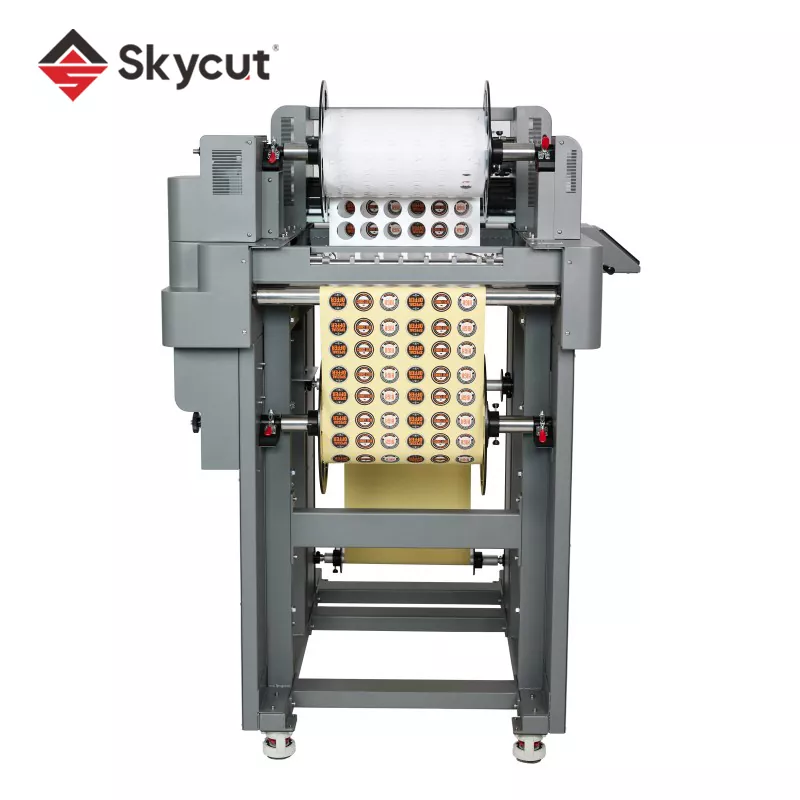

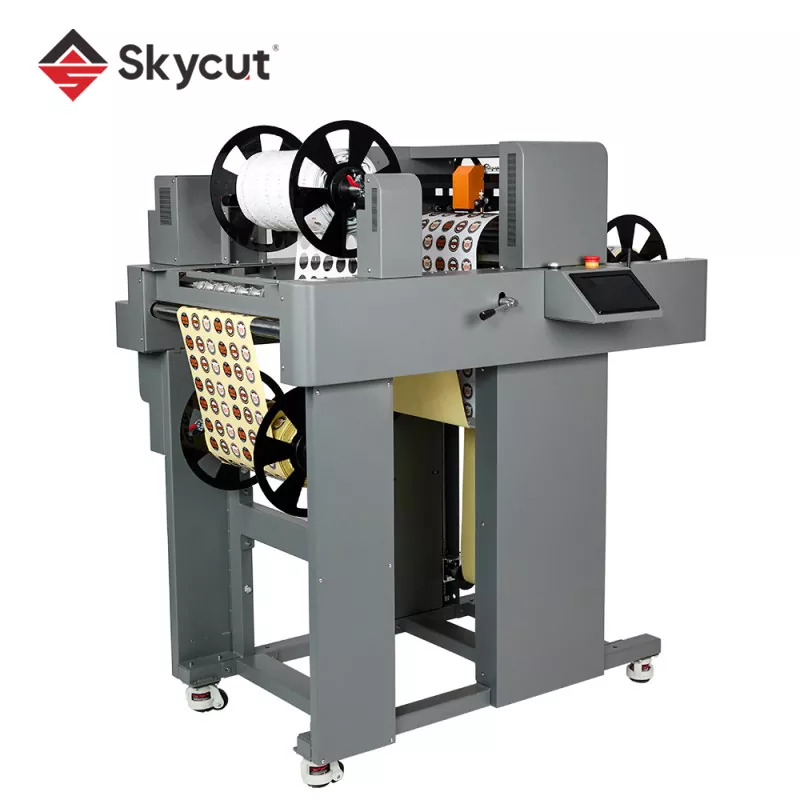

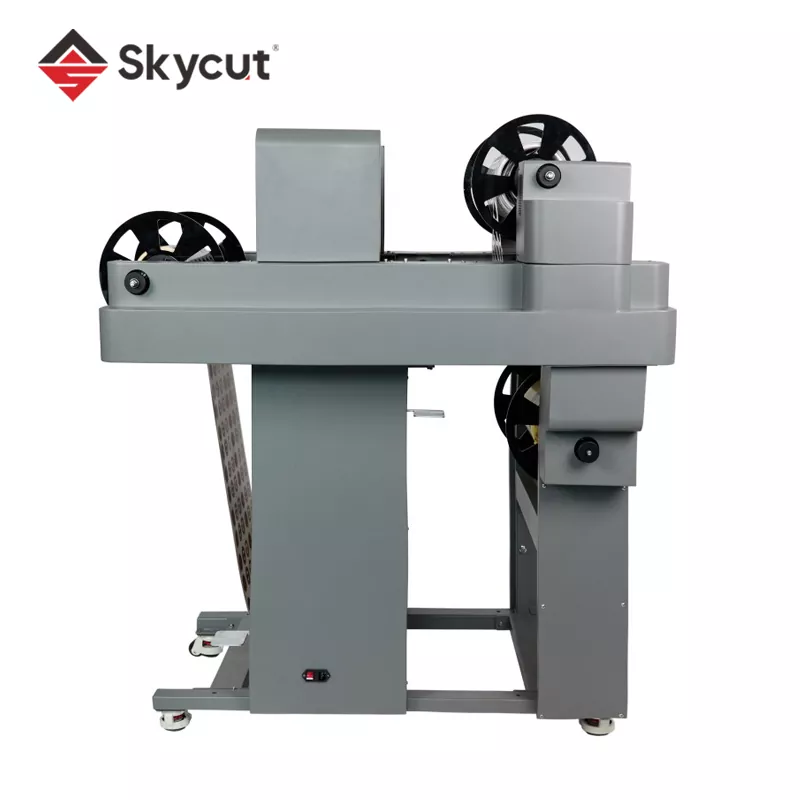

Roll to Roll Cutting Plotter Machine

Technical Specifications

Product Details

Continuous Roll Material Processing – Handles roll-fed self-adhesive materials through automated cutting, slitting, and rewinding, reducing manual handling between processes.

Precision Digital Label Cutting – Supports intricate label designs and customized sticker shapes without traditional die tooling.

Intelligent Web Guiding – Dual-sided floating shafts and automatic edge alignment help correct material deviation for consistent feeding accuracy.

Flexible 10mm Minimum Slitting Width – Produces narrow label rolls for different sizes, customized orders, and multi-SKU production.

High-Speed Cutting Performance – Cutting speed up to 1200mm/s and cutting force up to 2000g for efficient commercial processing.

Reliable Cutting Repeatability – 0.01mm repeatability supports consistent results across repeat production jobs.

Automatic Rewinding – Collects processed label materials into rolls for easier handling and downstream finishing.

Product Application

The Roll MAX is designed for commercial roll-to-roll sticker and label die cutting, including product labels, barcode labels, packaging stickers, promotional decals, and custom self-adhesive graphics. Its automatic feeding, precision contour cutting, flexible slitting, and rewinding make Roll To Roll Cutting Plotter Machine suitable for printing businesses and label converters handling regular commercial orders, customized jobs, and multi-SKU production. It provides an efficient digital alternative to traditional die-cutting methods for short- and medium-run label manufacturing.

Processing Workflow

Automatic Feeding — Roll material is loaded and fed into the machine

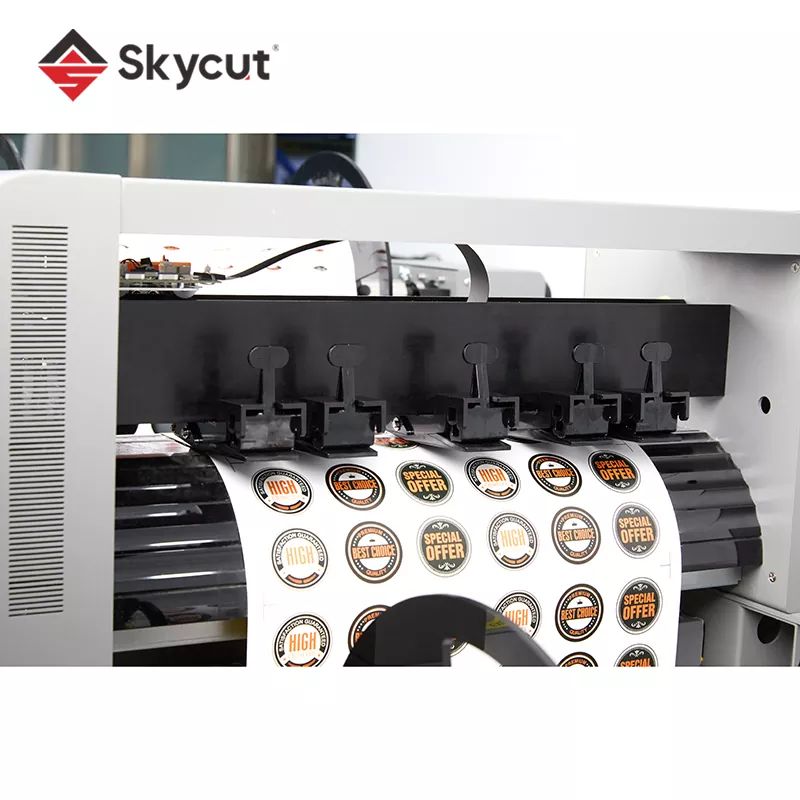

Die Cutting — Full cutting or kiss-cutting based on label requirements

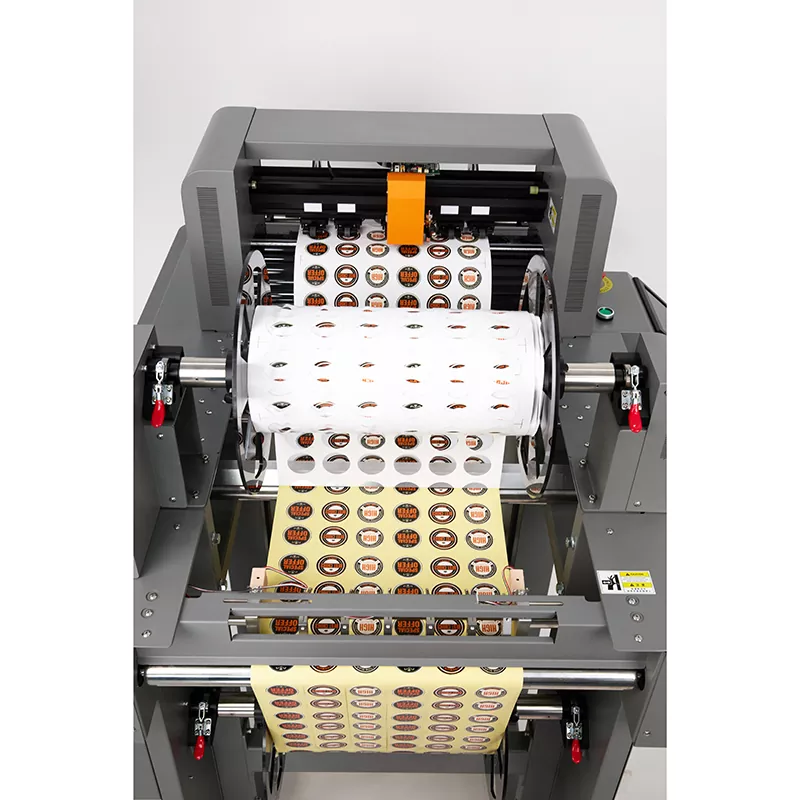

Waste Stripping — Excess material removed automatically

Slitting — Roll split into required label widths (min. 10mm)

Automatic Rewinding — Finished labels collected into rolls

FAQ

Q1: What is the SKYCUT Roll MAX Roll To Roll Cutting Plotter Machine designed for?

A: It is designed for commercial roll-to-roll sticker and label die cutting. It handles product labels, barcode labels, packaging stickers, promotional decals and custom self-adhesive graphics, making it suitable for printing businesses and label converters working on regular commercial orders, customized jobs and multi-SKU production.

Q2: How does intelligent web guiding keep roll material aligned during production?

A: Intelligent web guiding uses dual-sided floating shafts combined with automatic edge alignment. As the roll material moves through the machine, these systems detect and correct any sideways deviation. This keeps the web tracking accurately, which is essential for consistent cutting and slitting across long continuous runs.

Q3: What does "digital die cutting" mean, and how does it replace traditional die tooling?

A: Digital die cutting uses a digitally controlled cutting head driven by design files instead of a physical metal die. Since no die needs to be manufactured, shapes can be changed instantly between jobs. This removes die cost and lead time, making it practical for short and medium runs with frequent design changes.

Q4: What is the advantage of automated cutting, slitting and rewinding in one line?

A: Combining these processes in one continuous line reduces manual handling between stages. Material enters as a roll, is cut and slit, then rewound as finished label rolls. This shortens production time, lowers labor requirements and reduces the risk of damage or misalignment caused by moving material between separate machines.

Q5: How does automatic rewinding support downstream finishing processes?

A: Automatic rewinding collects processed label material back into rolls. This makes the output easier to handle, store and transport, and allows it to feed directly into downstream equipment such as overlamination, inspection or dispensing systems. It keeps the finished output in a format that fits standard label workflows.

Q6: Why does 0.01mm repeatability matter for repeat label orders?

A: 0.01mm repeatability means each label is cut in the same position every time a job is repeated. For commercial label orders produced in multiple batches, this ensures that reprints match earlier output and fit the same applicators or packaging. It reduces waste and prevents fit issues downstream.
